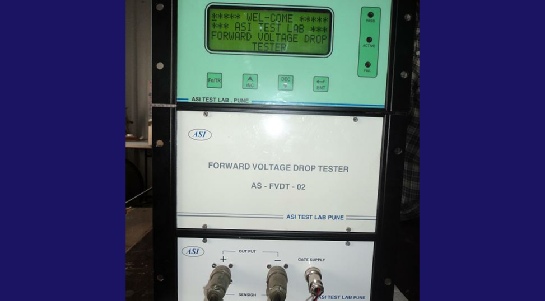

Forward Voltage Drop Tester

This is microcontroller based programmable test equipment used to test Forward voltage drop of  DUT.

MODEL NO. : AS-FVDT-01

TYPE : Table Mounted.

SUPPLY : 230 V AC 50 Hz –,+/-10%

 TEST SUPPLY:    50Amp DC (Maximum) .

MEASUREMENT RANGE:   0 to 2000mV .

ACCURACY: +/- 2%.

INDICATIONS:

LED Indications:



PASS     : Test Pass on the front and external on the test fixture.

FAIL      : Test Fail on the front and external on the test fixture.

ACTIVE: Test Active on the front panel.



LCD Display: Alpha-numeric 16x 2  display.

Facility to upload data to PC with the help of RS232 port.


Other Testers such as SCR, MOSFET, ZENER TESTER for inspection and Q. A. are available
