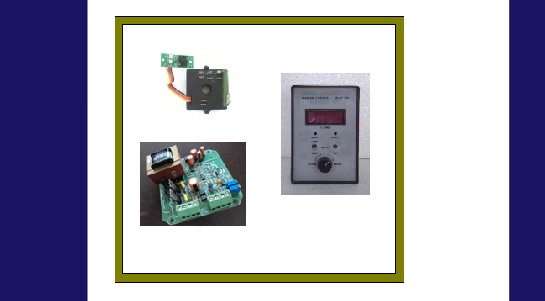

DOSING/ METERING PUMP CONTROLLER

DOSING PUMP CONTROLLER

SPECIFICATIONS:

•  INPUT VOLTAGE: 230 V AC, 50 Hz, +/-10%, as per pump sample provided  by customer
• OUT PUT : Solid state switch to operate pump solenoid.
• MIN. NO. OF PUMP CYCLE:10 Cycles+/-2 Cycles.
• MAX. NO. OF  PUMP CYCLE : 100 Cycles +/-5 Cycles
• LOW LEVEL SENSING & CONDITIONING   : RED LED glows   at low level & pump solenoid stops operating.
• OPTIONS AVAILABLE : POTENTIOMETER OR 4-20 mA Control



METERING PUMP CONTROLLER

MODEL NO.: ML-PP-100 (AS-SP-02)

• TYPE  : Panel  Mounted.
• SIZE  : 96 X 144 X 150 mm
• WEIGHT        : 1.80 Kg .
• SUPPLY : 230 V AC 50 Hz – Standard
• INPUT : Control Signal from controller 4 – 20 mA Standard.
• FEED BACK : 4  - 20 mA From Position Transmitter
• SITE ADJUSTMENTS & CONTROLS:

 Indicator  Zero

 Indicator  Span

Actuator  Zero

 Actuator  Span

 Auto – Manual Selector  Switch

•  INDICATIONS:
• LED Indications:

 Power – ON

 Open/Close – Value Open or Close

 F/B Fault – Fault in Feed Back Signal.

 Digital Display:3 ½ Digit for 0 – 100% Valve position display
